Dry Cooler Solutions for AI Data Centers

Powering High-Density AI Infrastructure with High-Efficiency Cooling Technologies

What is a Dry Cooler?

Reference dry-cooler platform spans sub-60 kW edge units to 3 MW+ containerized units, each built around ThermInfra’s thermal core for maximum heat-rejection density.

A Dry Cooler is an advanced air-cooled heat rejection system that efficiently removes excess heat from chilled water or dielectric process fluids by transferring it directly to ambient air. Unlike traditional cooling towers, dry coolers operate without continuous water evaporation, providing a reliable and sustainable liquid cooling loop for high-density compute infrastructure.

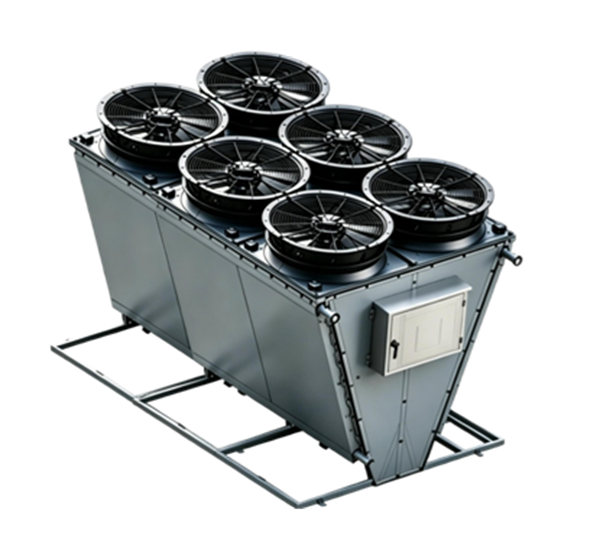

ThermInfra Dry Cooler Unit

Dry Cooler Platform Technical Specifications

Comprehensive operational and engineering parameters across all standard dry cooler models

Dry Cooler Model Rated Power (kW) PUE Rated Flow Rate (L/min) Design Pressure (MPa) Working Pressure Ambient Temp Range (℃) Fin Type Material Fan Configuration Rated Voltage (VAC) Voltage Range (VAC) Frequency (Hz) Layout Overall Dimensions (L×W×H mm) Weight (kg) Maintenance Cycle (Months)

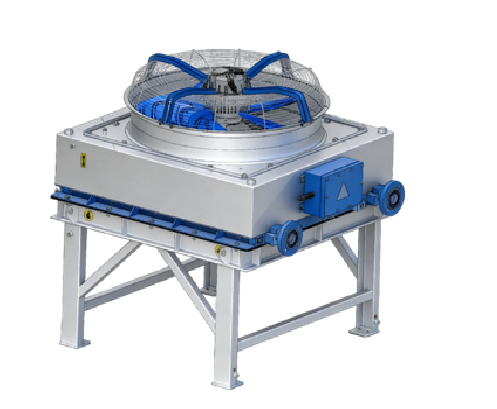

TI3.33KW/K 52 – 58 ≤ 1.065 80 – 100 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 1 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz Horizontal 1400 × 1400 × 1400 ~280 24

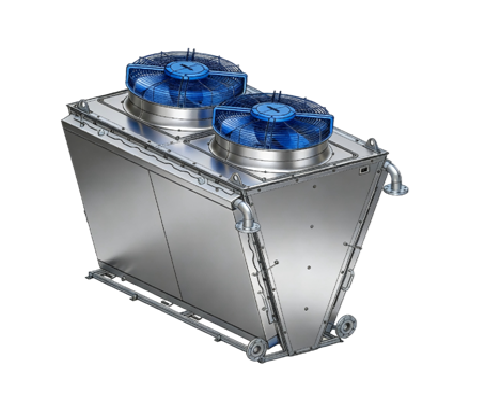

TI10.0KW/K 150 – 170 ≤ 1.043 220 – 250 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 2 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz V Type 2270 × 1670 × 1920 ~690 24

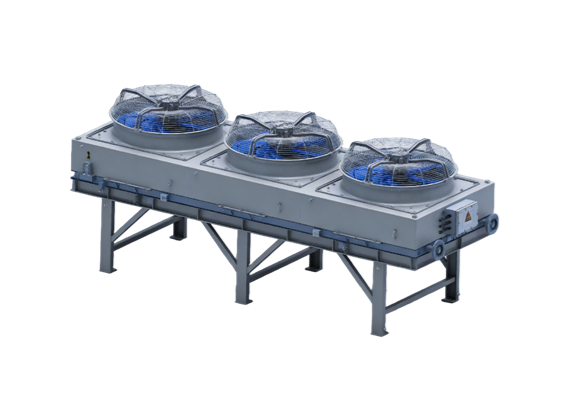

TI13.3KW/K 200 – 214 ≤ 1.048 320 – 400 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 3 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz Horizontal 3800 × 1550 × 1400 ~830 24

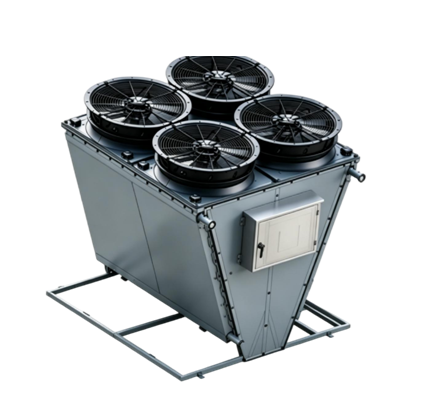

TI23.8KW/K 430 – 480 ≤ 1.048 645 – 720 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 4 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz V Type 2530 × 2200 × 2280 ~1120 24

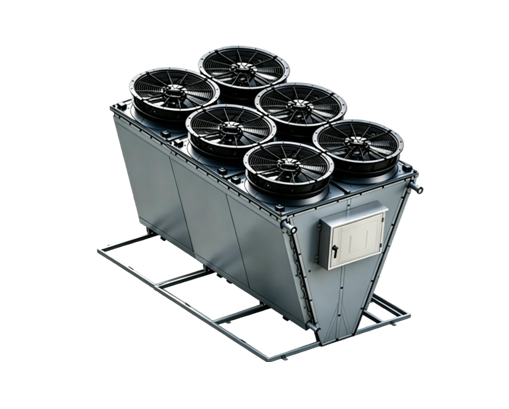

TI35.6KW/K 640 – 720 ≤ 1.048 840 – 1080 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 6 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz V Type 3900 × 2500 × 1950 ~1980 24

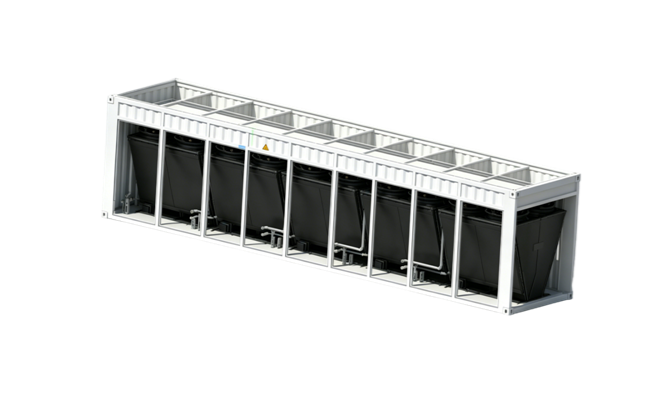

TI62.8KW/K 1000 – 1200 ≤ 1.048 1500 – 1800 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 10 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz 20' Container 6060 × 2440 × 2591 ~5500 24
TI125.6KW/K 2000 – 2400 ≤ 1.048 3000 – 3600 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 20 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz 40' HQ Container 12192 × 2440 × 2896 ~11000 24
TI150.7KW/K 2400 – 3000 ≤ 1.048 3600 – 4500 1.5 2.5 bar ~ 6 bar -40 ~ 45 Anti-Clogging Fins Long-life Aluminum Alloy 24 PCS / 3.25KW EC Fan 400 380 ~ 480 50/60 Hz 45' HQ Container 13716 × 2440 × 2896 ~12300 24

Standard Features: Anti-clogging fins • Long-life aluminum alloy • 380–480 VAC • 50/60 Hz • Extended 24-month maintenance cycle

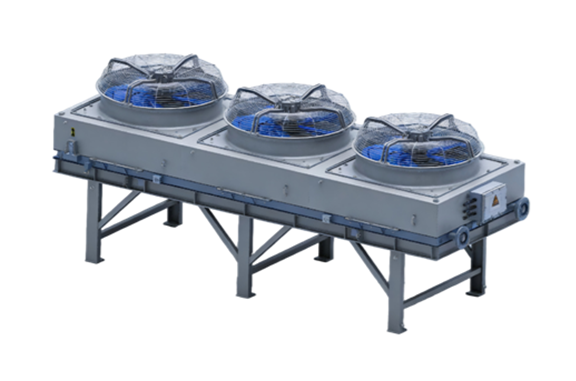

Dry Cooler Applications

Ideal Applications

  • AI & Hyperscale Data Centers
  • High-Density GPU Computing Clusters
  • High Performance Computing (HPC) Labs
  • Cloud & Edge Infrastructure Deployments
  • Industrial Heavy-Duty Process Cooling
